GDJB-PC
GOLD
GDJB-PC
GDJB-PC

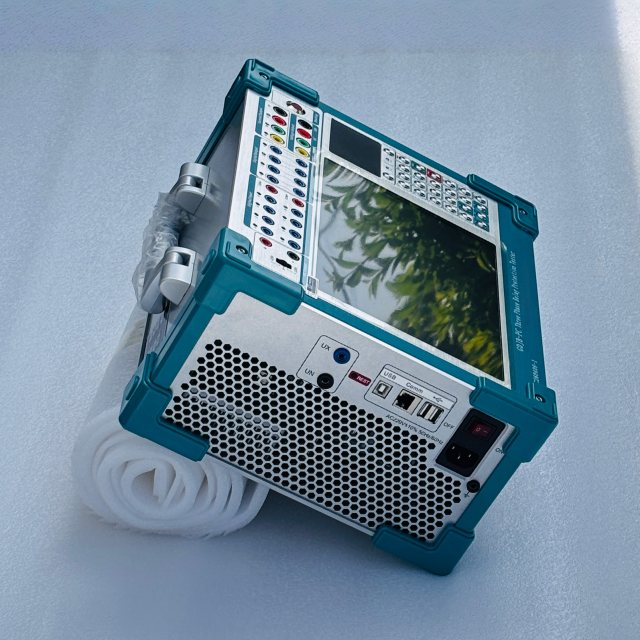

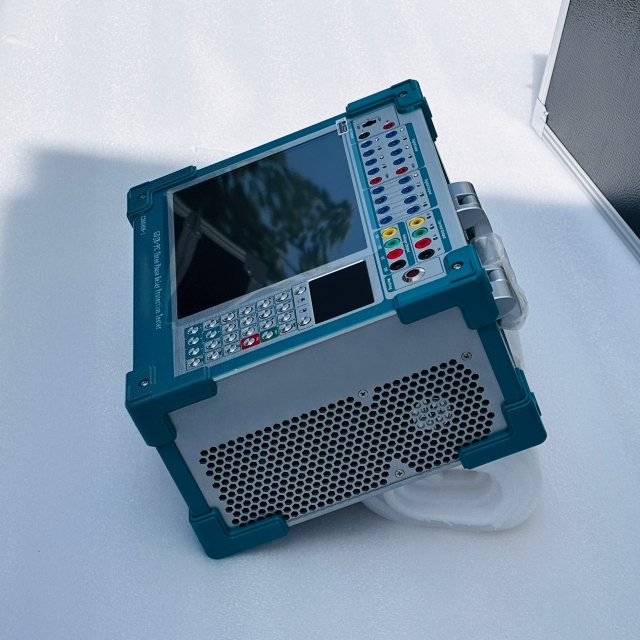

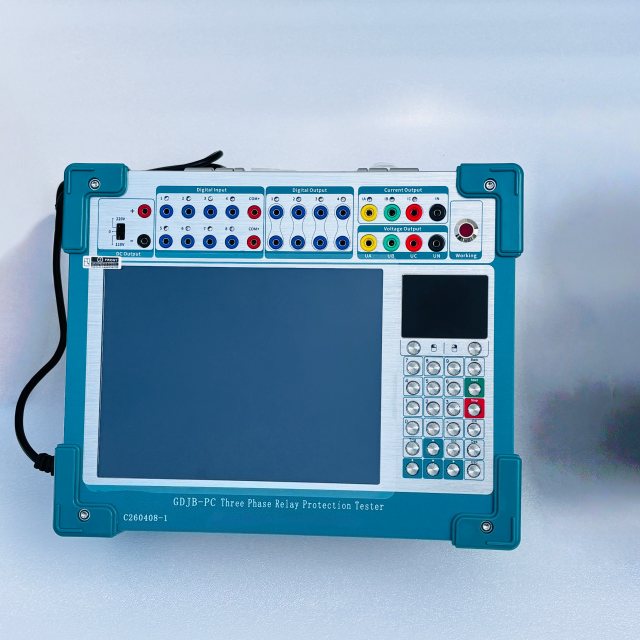

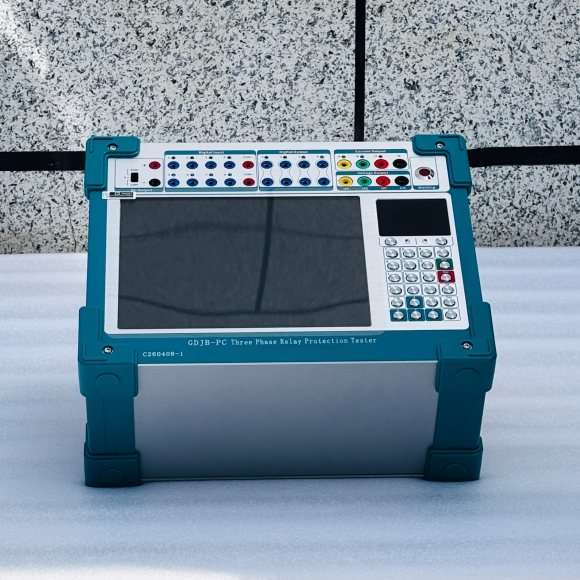

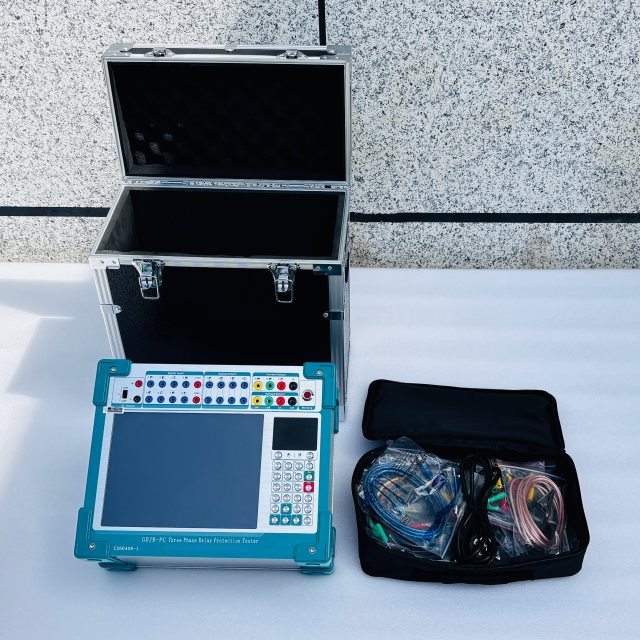

Universal Three Phase Relay Protection Tester Secondary Current Injection Test Set
(Industrial Computer Control Version)
1. Introduction
GDJB-PC Universal Three Phase Secondary Current Injection Test Set is applied to test the relay unit in relay protection system. At the same time it could be considered as a universal three phase AC/DC voltage source or current source.
GDJB-PC Universal Three Phase Relay Protection Tester Secondary Current Injection Test Set is applied to test protection replay based on voltage and current operation.
The main function of the tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
The standard output of 4 phases of voltage and 3 phases of current.
It could combine various type of current or voltage conveniently and has diversity type of protective experiment. Every phase of voltage output is 120V, and the total of the parallel current is 120A. The fourth phase voltage Ux has many functions and it can be set to be 4 type of every three voltages or synchronism checking voltage, or output any value of voltage.

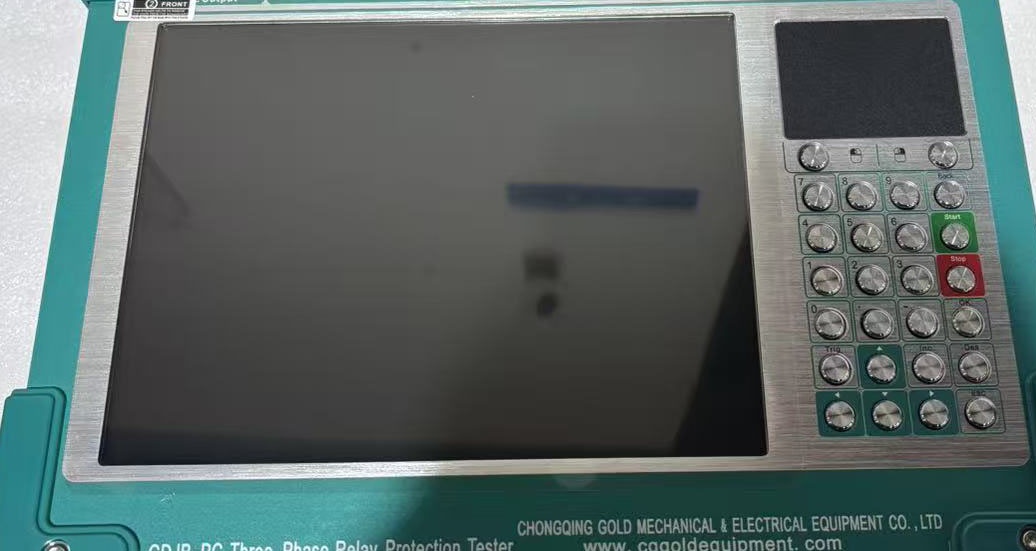

Equipped with ultra-thin industrial keyboard and photoelectric mouse, it can complete all kinds of operations through keyboard or mouse just like ordinary PC.
Equipped with independent dedicated DC auxiliary voltage source output, the output voltage is 110V (1a), 220V (0.6A).It can be used for relays or protection devices that need DC power supply.
It’s a low cost, simple operation and reliable performance device for secondary circuit test.
2. Specifications
| AC Current Source (3 * 40A) | |
| Single phase current output (RMS) | 0-40A / phase, accuracy: 0.2% ± 5mA |
| Three phase parallel output (RMS) | 0- 120A / three phase in phase parallel output |
Allowable working value of phase current for a long time (effective value) | 10A |
Maximum output power per phase | 400VA |
Maximum output power of three phase parallel current | 1000VA |
Maximum output allowable working time of triple parallel current | 10s |
| Frequency range | 0 - 1000Hz, accuracy 0.01Hz |
| Harmonic number | 2-20second |
Phase | 0-360 The accuracy is 0.1 degree |
| DC current source | |
DC current output | 0--± 10A / phase, accuracy: 0.2% ± 5mA |
| AC voltage source | |
Single phase voltage output (RMS) | 0 -125V / phase, accuracy: 0.2% ± 5mv |
Line voltage output (RMS) | 0-250V |
Phase voltage / line voltage output power | 75VA/100VA |
Frequency range | 0-1000Hz, accuracy: 0.001Hz |
Harmonic number | 2-20second |
Phase | 0-360Degree, accuracy: 0.1 degree |
DC voltage source | |
Single phase voltage output amplitude | 0-± 150V, accuracy: 0.2% ± 5mv |
Output amplitude of line voltage | 0-±300V |
Phase voltage / line voltage output power | 90VA/180VA |

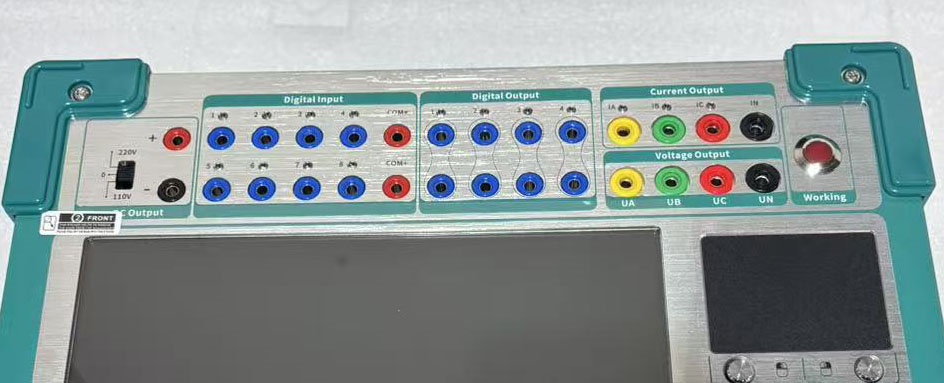

Switching value terminal | |
Switch input terminal | 8 |
Air contact | 1-20 mA, 24 V, internal active output of the device |
Potential reversal | Passive contact: low resistance short circuit signal Active contact: 0-250V DC |
Switch output terminal | 4, no contact, breaking capacity: 110V / 2A, 220V / 1A |
Others | |
Time frame | 1ms-9999s, measuring accuracy: 1ms |
Power Supply | AC220V±10%，50Hz/60Hz |
3. Hardware Composition of the GDJB-PC Three Phase Secondary Current Injection Test Set (Industrial Computer Control Version)
Built in high performance industrial control computer
DSP digital signal processing system
D/A and a/D conversion
High precision linear voltage and current power amplifier
Switch input and switch output
Dedicated independent DC power output

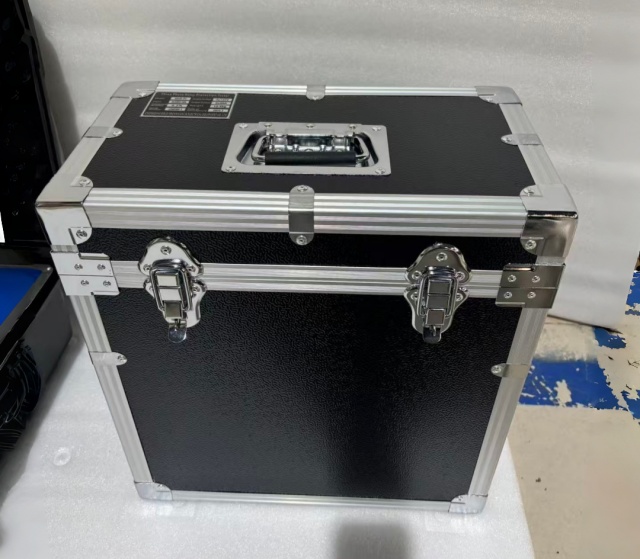

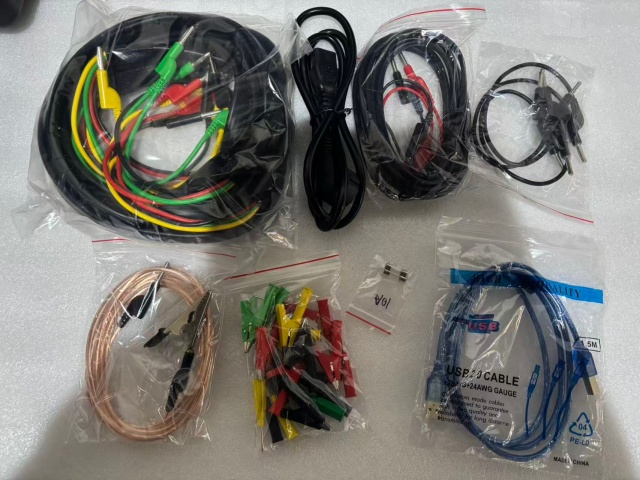

4. Accessories
