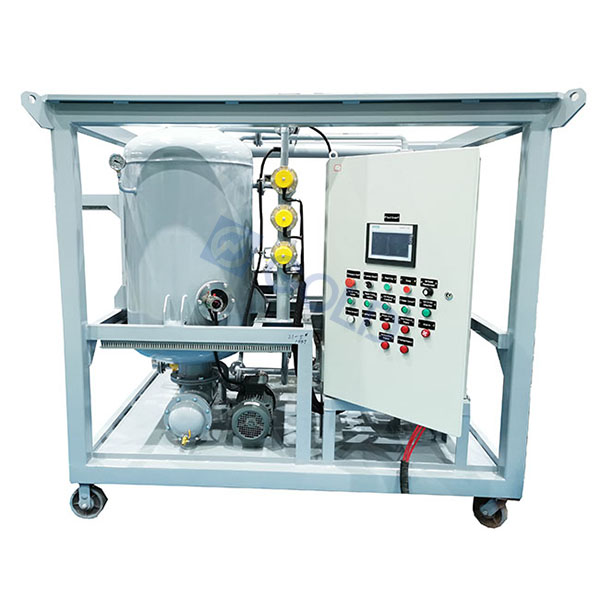

High Vacuum High Voltage Transformer Oil Purifier, Insulating Oil Filtration Machine
Cooperating with ASIAPHIL
---2 Sets ZJA-2KY 2000L/H Transformer Oil Purifier with Closed-door and Trailer
Performance of ZJA Series Transformer Oil Purifier
If the indicator of transformer oil before filtration is: water content ≤ 50ppm; Gas content: ≤ 10%; After 3 cycles of filtration with our ZJA series transformer oil purifier, the moisture content can reach 5-8 ppm; The gas content can reach 0.5%.
Introduction
ZJA Series Transformr Oil Purifier is used in high power transmission line such as 110kV ,220kV,500kV,750kV,±800kV,1100kV.
Transformer oil is very important to reliability, performance and lifetime of transformer. The oil should be free from moisture, dissolved gases, particles, etc. Even some new oils may require treatment to acceptable level before injecting into the transformer;
Our ZJA Series Transformer Oil Purifier is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.
With the advantages of high working vacuum, high filtration speed, oil quality protection, the filter advanced the oil treatment technique and equipment performance and once can raise the puncture voltage up to over 35V.
CHONGQING GOLD ZJA Series Transformer Oil Purifier can be installed by sealed regular or movable with a trailer, so it is suitable to treat oil, fill oil in vacuum chamber and circulating dry hot-oil when large transformer is being installed and overhauled.
Features
One pot with two-stage vacuum-segregating space, it comes into being different pressure so as to keep oil line balance between two stages.
Imported vacuum-pump from Europe has preceding level in the world and high air pump speed guarantee high working vacuity.
New technology of vacuum-segregating adopts particular spinning disk and stainless steel machine with dehydration and air pump
Using new type of heating equipment which can reduce heating burthen and extend oil life.
Oil level control adopts photoelectric way of which the main components are imported from Switzerland.
Customers can choose equipment equipped with all or partly imported components.
It’s equipped with filter assemblies imported from Italy.
All pumps must be airproofed by our factory, moreover running without noise and leakage. extended oil life.
Specifications
Parameters | Unit | ZJA-1.8KY | ZJA-3KY | ZJA-6KY | ZJA-9KY | ZJA-12KY | ZJA-18KY |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Working Vacuity | Pa | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
Working Pressure | Mpa | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Temperature Range | ℃ | 45-65 | 45-65 | 45-65 | 45-65 | 45-65 | 45-65 |
Power Supply | As per customer's requirements | ||||||
Total Power | KW | 16 | 36 | 70 | 100 | 150 | 200 |
Inlet/Outlet Diameter | mm | 20/20 | 25/25 | 32/32 | 40/40 | 50/50 | 65/65 |
Length | mm | 1600 | 1800 | 2200 | 2500 | 2800 | 3450 |
Width | mm | 1250 | 1450 | 1600 | 1950 | 2150 | 2600 |
Height | mm | 2000 | 2200 | 2450 | 2700 | 3000 | 3000 |
Weight | Kg | 500 | 700 | 1460 | 1800 | 2400 | 4000 |
Oil Index after purified
Breakdown Voltage | KV | ≤75(Spherical electrodes) |
Water Content | ppm | ≤10 |
Gas Content | % | ≤0.3 |
Filtering Accuracy | µm | 1~3 |
Why Choose CHONGQING GOLD Transformer Oil Purifier?
CHONGQING GOLD is an oil purifier and electrical testing equipment company integrating R&D, manufacturing and sales. Our company has passed SGS and ISO audits and obtained. You can choose with confidence.
Choose CHONGQING GOLD’s transformer oil purifier, you will get:
Face-to-face support,lifetime technical support
High quality (officially passed the quality system ISO9001, ISO14001, ISO45001 certification).
Design flexibility
Shorter supply chain
Faster response
Competitive price
Customize according to your specific requirements
Stainless steel vacuum chamber and pipes
Different Type for Choice

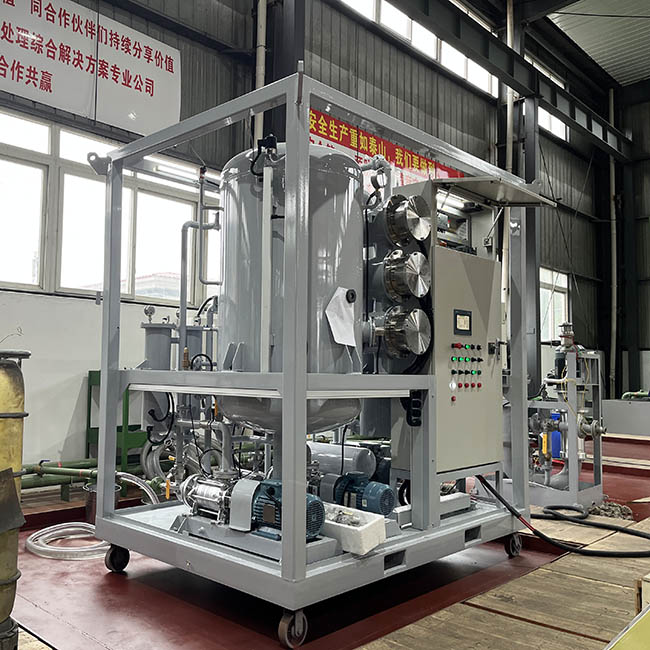

ZJA High Vacuum High Voltage Transformer Oil Purifier, Insulating Oil Filtration Machine
Transformer Oil Purifier Factory Show
--More than 20 years experiences of manufacturing High Vacuum High Voltage Transformer Oil Purifier
Successful Case
Work Site
Our Partners
Contact Us
Contact Person: Christine Gou
Whatsapp/Wechat: +86 15123029885
Mobile: +86 15123029885
E-mail: gold05@hy-industry.com
